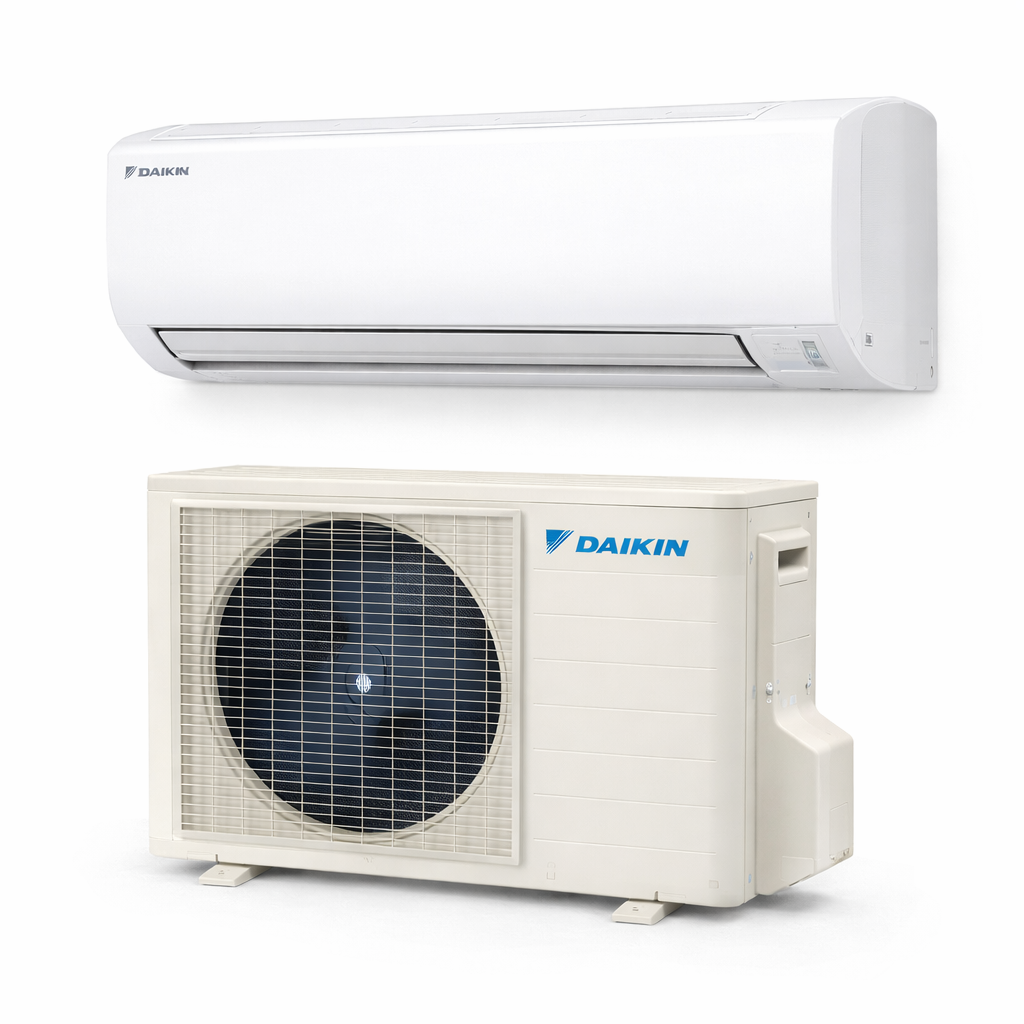

Daikin GTL Inverter Split AC (1/1.5/2 Ton)
3 Star Standard Builder Series
Technology :Non Inverter
Capacity kW : 5.05
Compressor Warranty : 5 Yrs
Guaranteed Safe Checkout
Features & Compatibility
| Model name | Indoor unit (IDU) | GTL50UV16U3/V3 | |
|---|---|---|---|
| Outdoor unit (ODU) | RLG50UV16U3/V3 | ||
| Star Rating* | 3 Star | ||
| Rated Power Supply | Phase/Frequency/Voltage | 1φ/50Hz/230V | |
| Power Supply Intake | Outdoor unit | ||
| Rated Cooling Capacity | kW | 5.05 | |
| Btu/h | 17230 | ||
| Cooling capacity @ 43°C | % | 100% | |
| Rated Power Consumption | W | 1278 | |
| Rated Annual Power Consumption | kWh | 989.31 | |
| Rated ISEER | Wh/Wh | 3.95 | |
| Voltage Range (Stabilizer Inside) | V | Yes | |
| Operating Current | A | 5.73 | |

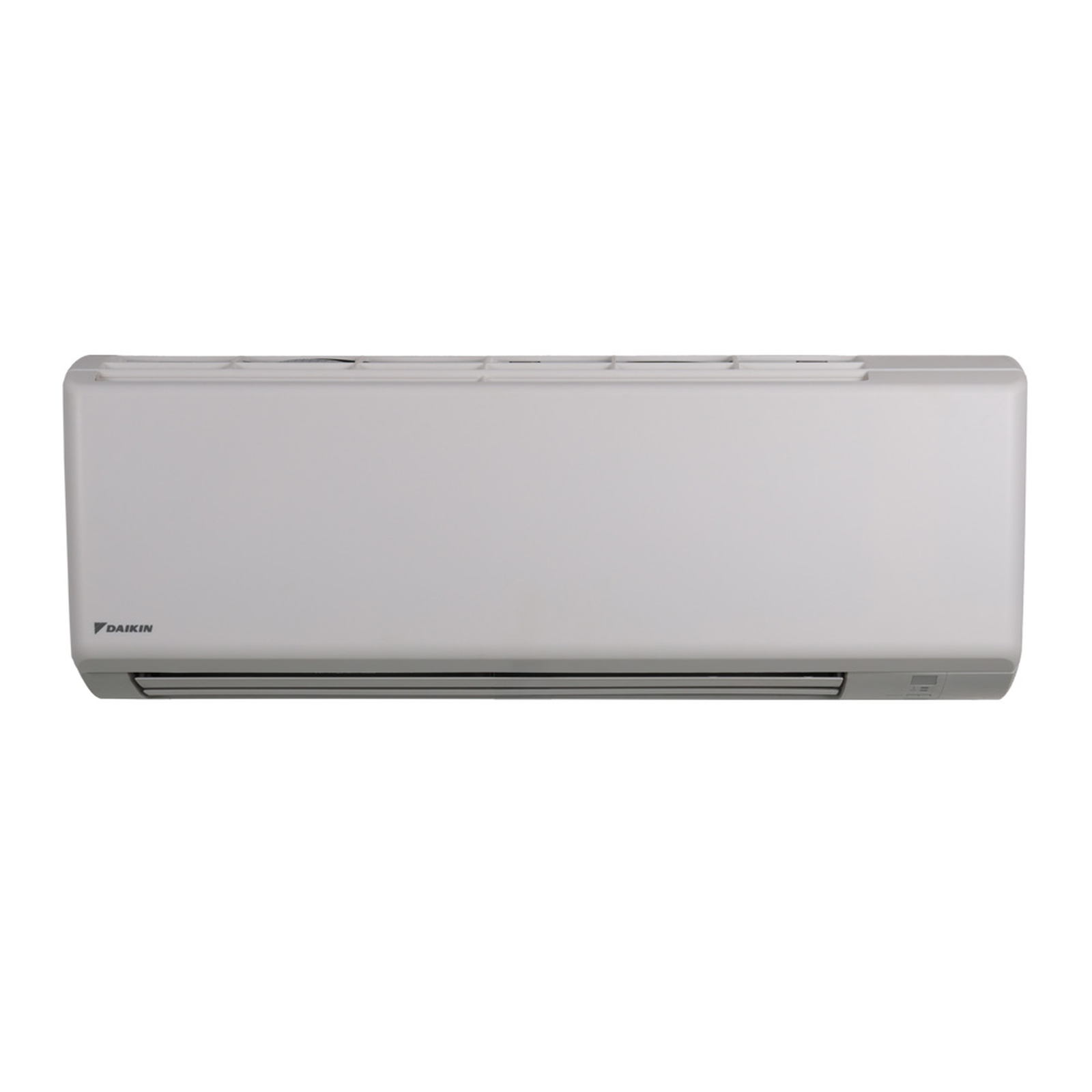

Indoor unit (IDU)
| Panel Colour | White | ||
|---|---|---|---|
| IDU Dimension (HxWxD) | mm | 298x885x229 | |
| Package Dimension (HxWxD) | 375x980x325 | ||
| IDU Net Weight (Gross Weight) | kg | 11 (14) | |
| Airflow Rate | Feet3/min (cfm) | 586 | |
| m3/min (cmm) | 16.6 | ||
| Moisture Removal | l/hr (Litres/Hour) | 1.6 | |
| Operation Sound H/M/L | dBA | 48/44/38 | |
Outdoor unit (ODU)
| ODU Dimension (HxWxD) | mm | 595x845x300 | |
|---|---|---|---|
| Package Dimension (HxWxD) | 680x1035x410 | ||
| ODU Net Weight (Gross Weight) | kg | 40.5 (45.5) | |
| Compressor Type | Rotary Compressor | ||
| Refrigerant | R-32 | ||
| Breaker Size | A | 15 | |
| Piping Length | Charge-Less | m | 10 |
| Max. Length | 20 | ||
| Max. Height | 10 | ||
| Piping Connection | Gas / Liquid | mm (Inch) | φ12.7/φ6.4 (1/2”/1/4”) |
| Operating Ambient Temperature Range | Cooling (Min~Max) | °C DB | 19.4~50 |
