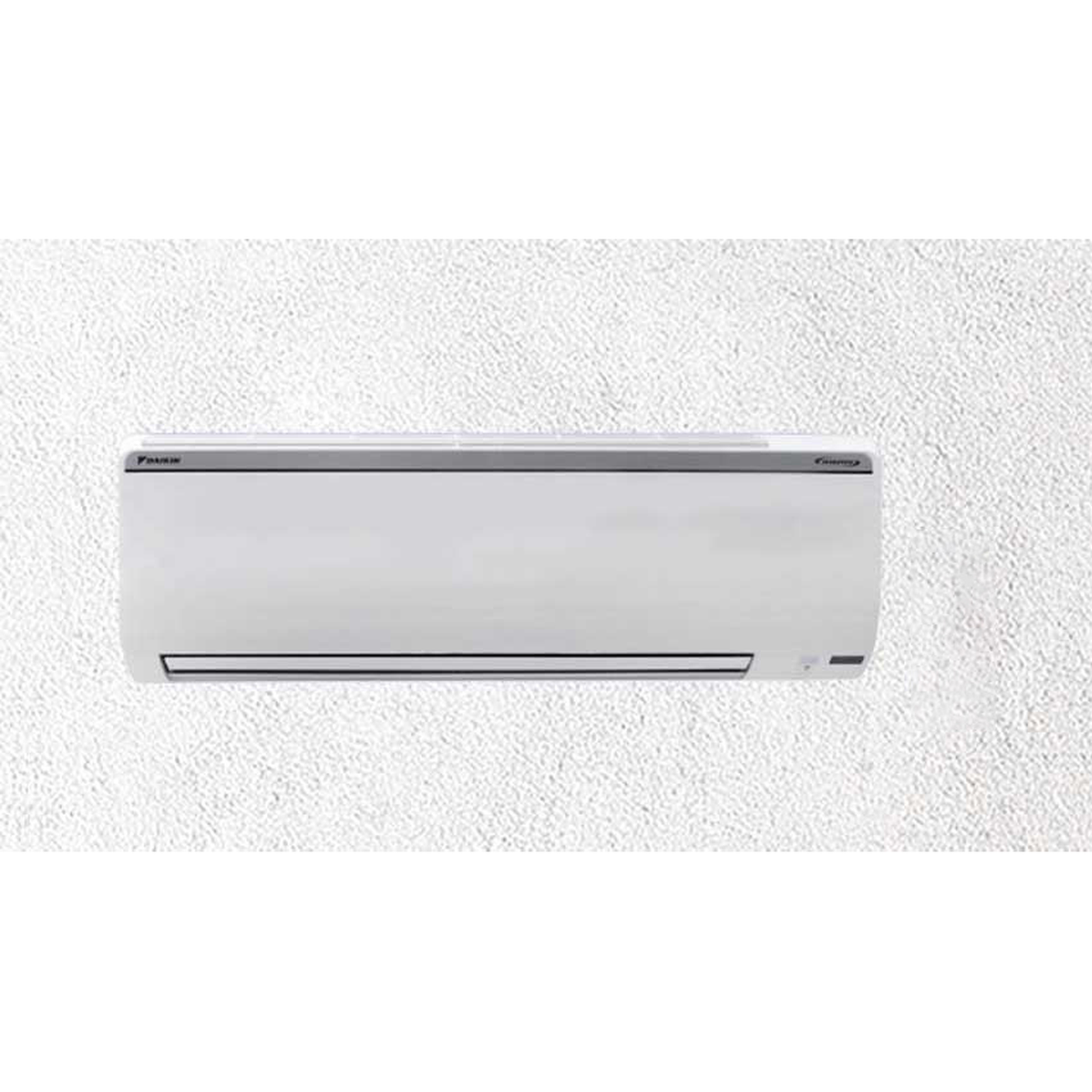

Daikin FTKC Inverter Split AC (1/1.5/2 Ton)
3 Star Standard Series
Technology : Inverter
Capacity kW : 5.0
Compressor Warranty :10 Yrs
PCB Warranty :5 Yrs
Guaranteed Safe Checkout
Features & Compatibility
| Model name | Indoor unit (IDU) | FTKC50UV16V | |
|---|---|---|---|
| Outdoor unit (ODU) | RKC50UV16V | ||
| Star Rating* | 3 Star | ||
| Rated Power supply | Phase /Frequency/Voltage | 1φ 50Hz 230V | |
| (220-240V) | |||
| Power Supply Intake | Outdoor unit | ||
| Rated Cooling Capacity Full/Half (min.～max.) | kW | 5.0/2.5 (1.75~5.2) | |
| Rated Cooling Capacity Full/Half (min.～max.) | Btu/h | 17100/8550 (5970~17740) | |
| Rated Power Consumption Full/Half (min.～max.) | Cooling | W | 1670/554 (375~1750) |
| Rated Annual Power Consumption | kWh | 966.47 | |
| Rated ISEER | Wh/Wh | 4 | |
| Voltage Range (Stabilizer Inside) | Cooling | V | 130~285 |
| Operating Current | Cooling | A | 7.41 |
Indoor unit (IDU)
| Panel Colour | White | ||
|---|---|---|---|
| IDU Dimension (HxWxD) | mm | 298 x 885 x 229 | |
| Package Dimension (HxWxD) | 375 x 980 x 325 | ||
| IDU Net Weight (Gross Weight) | kg | 10.5 (13.5) | |
| Airflow Rate | Cooling | Feet3/min (cfm) | 572 |
| m3/min (cmm) | 16.2 | ||
| Operation Sound H/MH/M/ML/L/SL | Cooling | dBA | 46/43/41//38/35/32 |
Outdoor unit (ODU)
| ODU Dimension (HxWxD) | mm | 595 x 845 x 300 | |
|---|---|---|---|
| Package Dimension (HxWxD) | 680 x 1035 x 410 | ||
| ODU Net Weight (Gross Weight) | kg | 28(35) | |
| Compressor Type | Swing Compressor | ||
| Refrigerant | R-32 | ||
| Breaker size | A | 20 | |
| Piping length | Charge-Less | m | 10 |
| Max Length | 20 | ||
| Max. Height | 16 | ||
| Piping Connection | Gas / Liquid | mm (Inch) | Φ12.7 / φ6.4(1/2”/1/4”) |
| Operating Ambient Temperature Range | Cooling (Min-Max) | °C DB | 20~52 |
