Daikin JTKJ50U – Waizu Series Inverter Split AC

Performance Details

• Cooling Capacity: 5.28 kW (18,000 BTU)

• Rated Power Consumption: Approx. 1350 W

• Annual Power Consumption: ~739 units/year

• ISEER: 5.15

• Voltage Range (Stabilizer Free): 130V – 285V

• Operating Current: 6.22 A

Indoor Unit (IDU)

• Panel Color: White

• Dimensions (W×H×D): 298 × 806 × 235 mm

• Package Dimensions: 330 × 1000 × 375 mm

• Net Weight (Gross): 11 kg (14 kg)

• Airflow Rate: 548 CFM

• Moisture Removal: 1.8 L/hr

• Operation Modes: Cool / Dry / Fan / Auto / Sleep

Outdoor Unit (ODU)

• Dimensions (W×H×D): 550 × 765 × 300 mm

• Package Dimensions: 680 × 1035 × 410 mm

• Net Weight (Gross): 32.5 kg (35.5 kg)

• Compressor Type: Swing Compressor

• Refrigerant: R-32 (Eco-Friendly)

• Breaker Size: 20 A

• Max Piping Length: 20 m

• Max Height Difference: 16 m

  • Operating Temperature Range: 10°C – 54°C

Measurement Conditions

• Cooling capacity measured at indoor temp 27°C DB / 19°C WB

• Outdoor temp 35°C DB

• Standard piping length 5 meters

Availability

• Catalogue: Available

• Purchase Options: Authorized Dealers & Online Partners

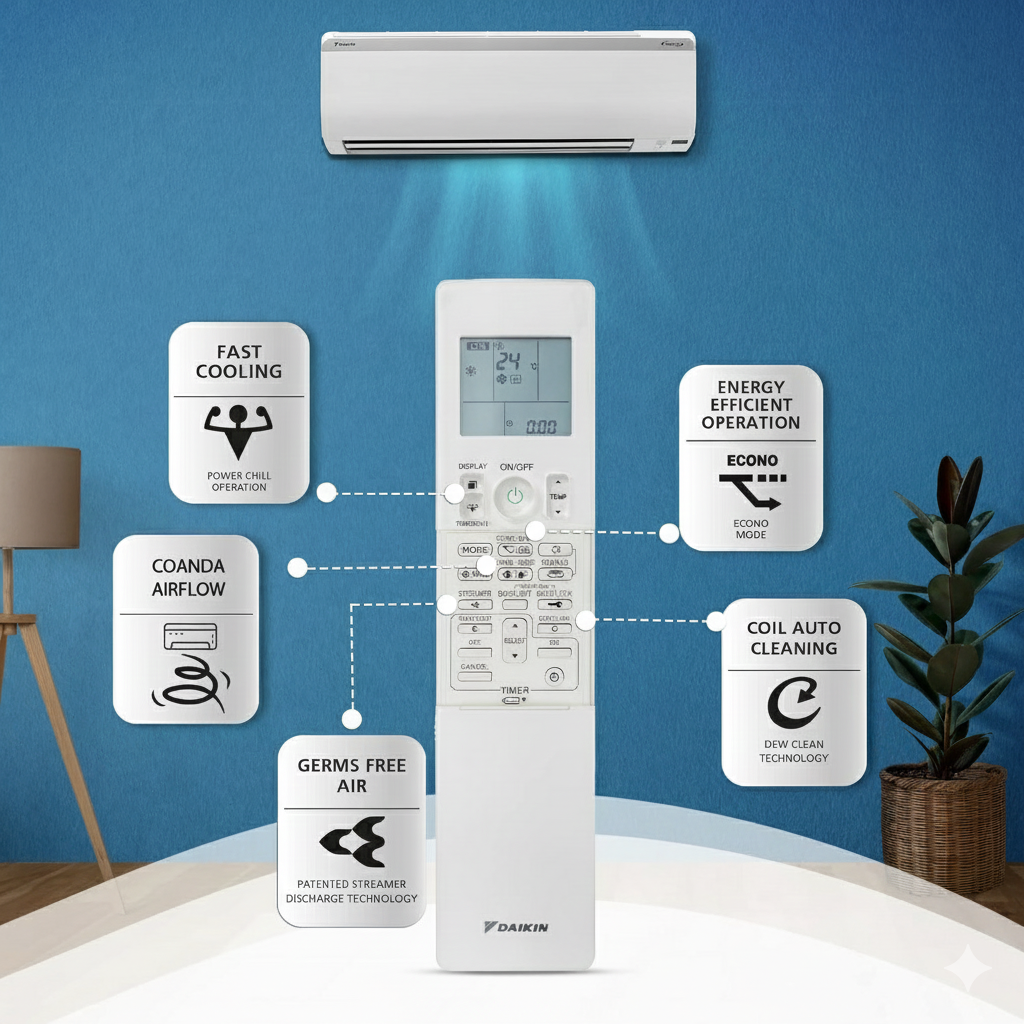

Salient Features

🔹 Triple Display

Displays room temperature, set temperature, and error codes for easy monitoring and control.

🔹 Dew Clean Technology

Automatically cleans the indoor heat exchanger, removing dust, bacteria, and moisture to deliver fresh and healthy air.

🔹 Patented Swing Compressor

Reduces friction and vibration, ensuring:

• Quieter operation

• Longer compressor life

• Higher energy efficiency

Warranty

• Compressor Warranty: 10 Years

• PCB Warranty: 5 Years
